Features:
- Quick and easy disassembly (Figure A)
- Color-through color panels hide scuffs and scratches
- Armrests are padded and adjustable
- Quick connect batteries

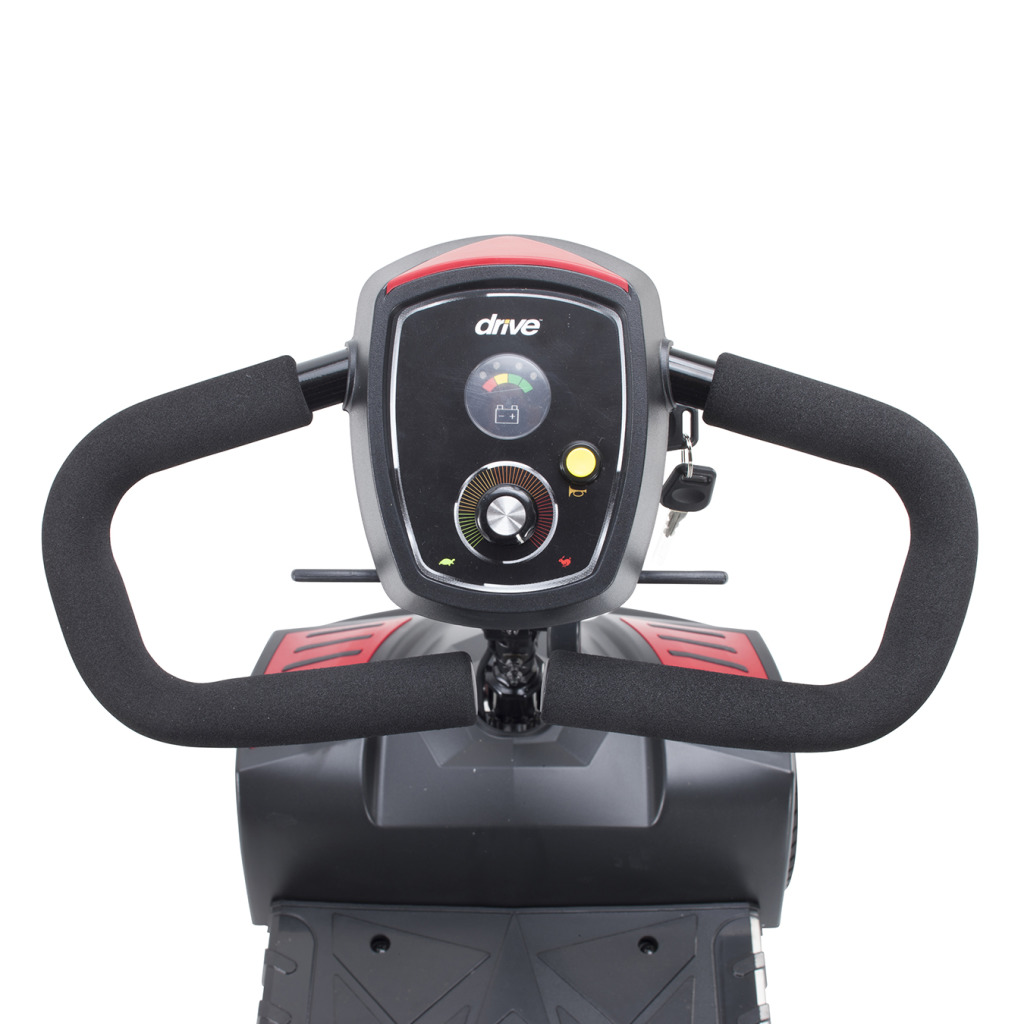

- Ergonomic throttle control

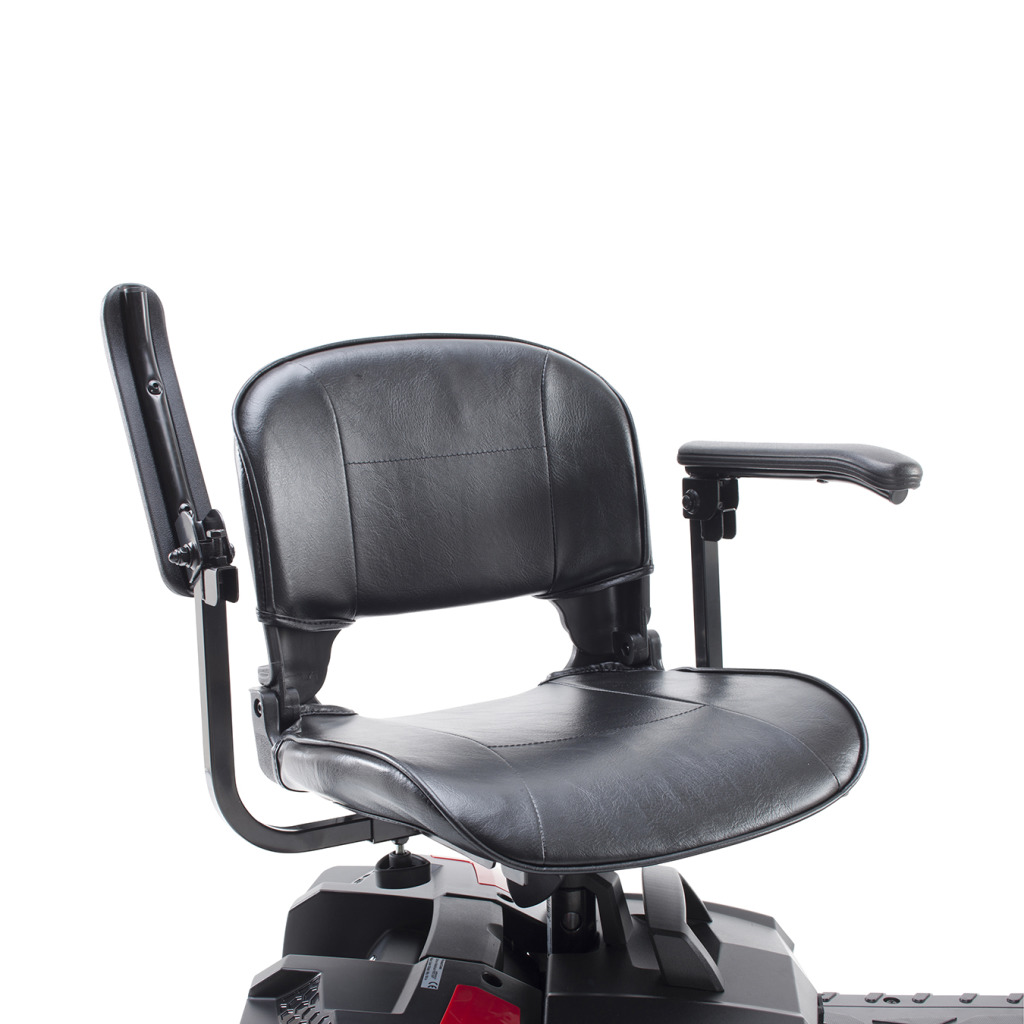

- Height-adjustable swivel seat with fold-down backrest
- Flat-free, non-marking tires
- Large, plastic carry basket
- Easy-to-adjust tiller
- Anti-tip wheels
- Delta tiller
- Easy free wheel operation
- Available with 12AH or 20AH batteries
- 20AH batteries increase scooter's maximum range
Specifications
| Base Weight | 58 lbs |
| Batteries (pair) | 12 Vx12AH, 12V x 20AH (EXT Model only) |
| Brakes | Electromagnetic |
| Charger | 2A Offboard |
| Climbing Angle | 6* |
| Controller | CTE 45A |
| Dimensions | 42.5" (L) X 21.5" (W) |
| Floor-to-Seat Height | 17"-19" |
| Front Tires | 8" X 2" Flat-Free |
| Ground Clearance | 2.5" |
| HCPCS | K0800 |
| Maximum Range | 9 miles(12 AH); 15 miles (20 AH) |
| Motor | 27 Vx 270Wx 4700rpm |
| Rear Tires | 8"x 2" Flat-free |
| Seat Dimensions | 16.5" (W) x 16" (D) |
| Seat Weight | 16 lbs. |
| Top Speed | 4.25 mph |
| Total Weight | 94 lbs. |
| Turning Radius | 53.75" |
| Warranty on Batteries | 12 Months |
| Warranty on Electronic Controller/Drive Train Comp | 24 Months |
| Warranty of Frame | Lifetime |
| Weight Capacity | 300 LBS. |
