From Drive
*CONTINUE TO RESOURCES FOR VIDEO*
Features:
- Shroudless design offers easy access to internal components and batteries
- Semi-Reclining captain seat with adjustable headrest is height and depth adjustable
- Armrests are padded, adjustable and removable
- Available with 22" or 24" width Captain's seat
- Quick-release lever allow for easy seat removal
- Flip-up footplate includes rubber bumper to prevent damage and is height, depth and angle adjustable
- Positioning belt included
- Programmable Controller
- Black, flat-free non-marking wheels
- Large, front-anti-tip wheels feature suspension for safety, smoother ride and enhanced obstacle handling

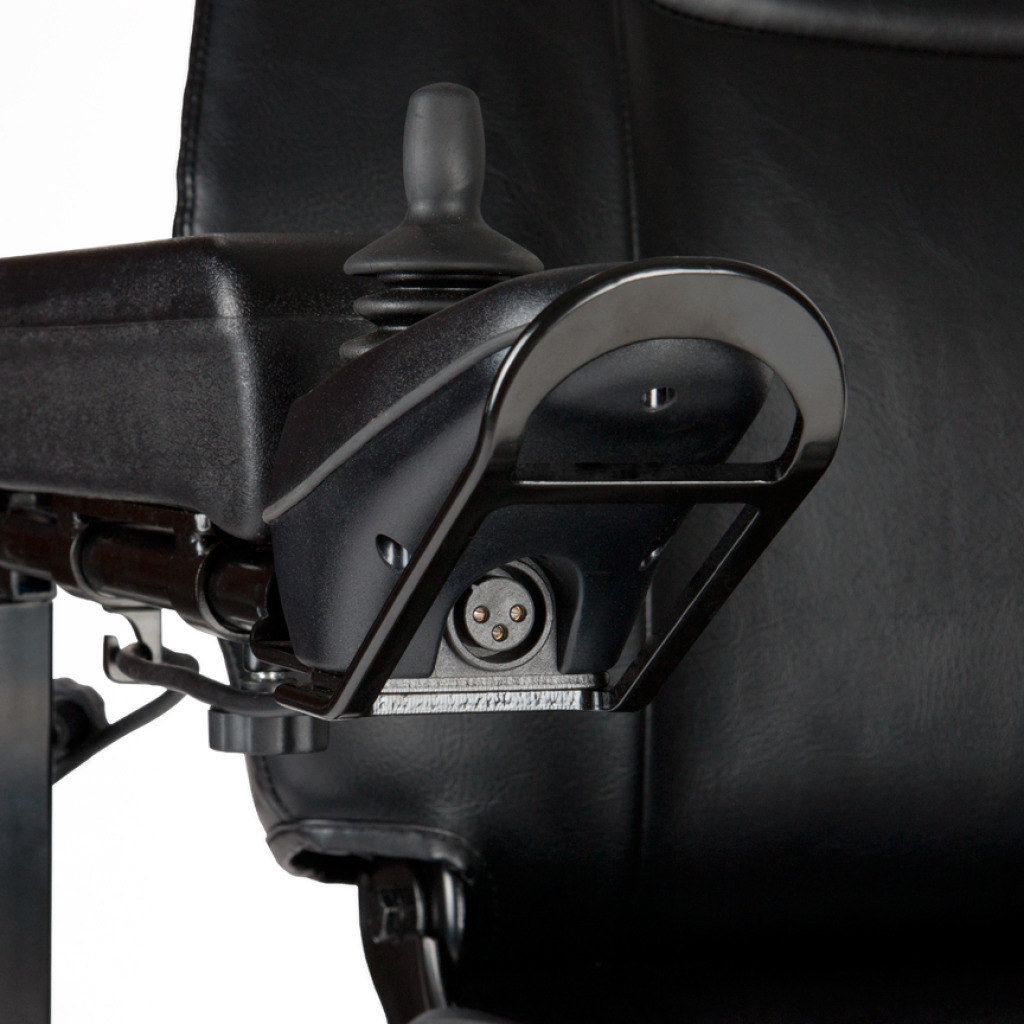

- Joystick is protected by metal casing
- Easy free-wheel operation
- Slide-out battery tray for easy access
- Optional swing-away controller arm sold separately
- Optional elevating leg rests sold separately
Specifications
| Base Weight | 98 lbs. |
| Batteries (pair) | 12V x 50AH |
| Battery Weight (pair) | 66 lbs. |
| Brake | Electromagnetic |
| Caster Wheels | 10" x 3" |
| Charger | 5A |
| Climbing Angle | 6* |
| Controller | PG VR2 70A |
| Dimensions | 48" (L) X 25.75" (W) |
| Drive Wheels | 14" x 3" |
| Ground Clearance | 2.5" |
| HCPCS | K0825 |
| Maximum Range | 15 miles |
| Motor | 24V x 450Wx 2700 rpm |
| Seat Dimensions | 22"x 20"; 24"x 22" |
| Seat Weight | 48 lbs. |
| Top Speed | 4 mph |
| Total Weight | 212 lbs. |
| Turning Radius | 29" |
| Warranty | 1 Year Limited |
| Warranty on Batteries | 12 Months |
| Warranty on Electronic Controller/Drive Train Comp | 24 MONTHS |
| Weight Capacity | 450 lbs. |
- Large front wheels absorb and climb, easily tackling life’s everyday obstacles.
- An intuitive hand control ensures effortless operation and simple maneuvering.
- 450 lbs. weight capacity.
- Up to 4 mph maximum speed.
- 24" turning radius and up to 14.4 miles per charge.
- Comfortable, depth-adjustable, limited recline high-back seat with headrest.
- Easy rear access to batteries.
